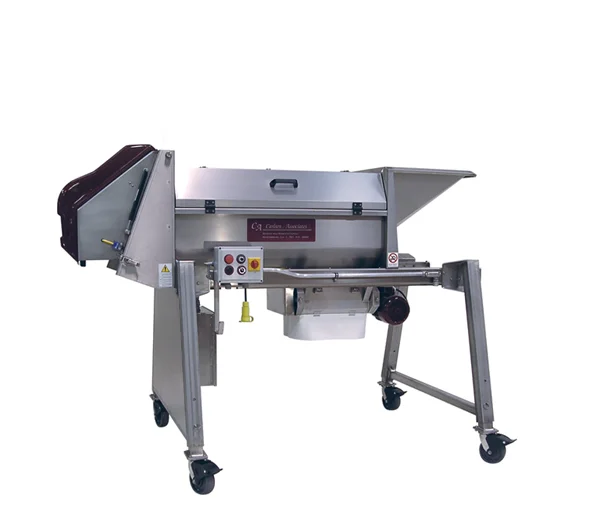

Puleo Vega 10 Destemmer-Crusher
Puleo Vega 10 Destemmer-Crusher
Production rate of 1-10 tons per hour
The Puleo Vega 10 is equipped with domestically available electrical components to ensure component availability. Its' simple operation and configuration will provide the best possible results in fruit handling.
Construction
Hinged drive end
Easy shaft and cage removal without the use of tools
Stainless steel electropolished basket, two hole diameters available
Stainless steel frame and inspection doors
4 stainless steel casters with brakes
Adjustable legs for up to 55" of clearance
Controls
Variable frequency drive is mounted in a stainless steel enclosure
Stop, start, and speed control are panel mounted
50’ of power cord (cord cap is to be supplied by the customer)
Safety switches are on all covers and doors
A pigtail is supplied on the control panel for remote devices
Applications
1 - 10 tons per hour
Destem and/or Crush to a
Carlsen Must System
Destem and/or Crush
to 1/2 or 1 ton Picking Bin
Standard Features
Removable Basket
Removable Shaft
Variable Speed Control
Adjustable Crush Rolls
Two-Year Warranty
Options
Single Phase Power
18 or 22 mm Cage
Call for Pricing
Crush Roll Assembly
TEFC motor
Slide-out design for when crush rolls are not in use
Adjustable crush rolls
